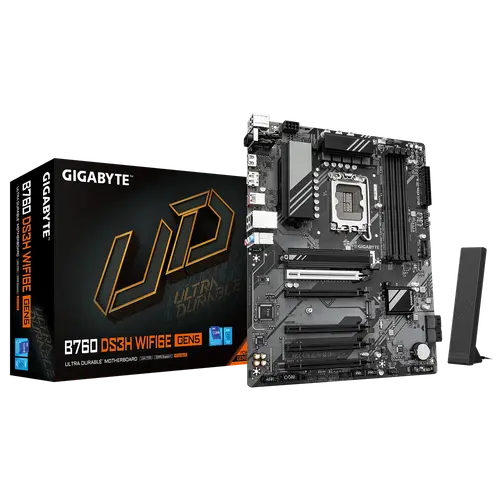

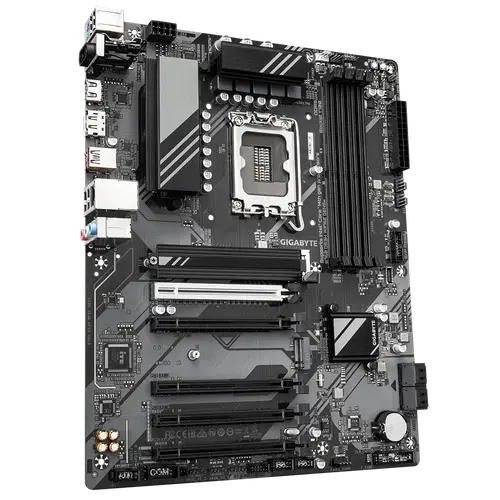

Дънна платка, GIGABYTE GB B760 DS3H WF6E GEN5/LGA1700

  • GIGABYTE
Дънна платка, GIGABYTE GB B760 DS3H WF6E GEN5/LGA1700
Цена
€139 21 / 272 27 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
 Добави в Количката
Удължи гаранцията си
+1 година: + 19€
+2 години: + 27€
РЕЙТИНГ
ТВОЯ РЕЙТИНГ
Мнения
Улеснено Поръчване - като въведете само телефон и име:
Съгласен съм с Общите условия
Ще Ви потърсим в рамките на работния ден. Внимание: При грешен телефонен номер, нямаме начин да се свържем с Вас.
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
gigabyte.com/Motherboard/B760-DS3H-WIFI6E-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
АтрибутСтойност
Vendor_urlgigabyte.com/Motherboard/B760-DS3H-WIFI6E-GEN5
ChipsetIntel® B760 Express Chipset
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedLGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU's supportedL3 cache varies with CPU
Memory typeDual channel memory architecture
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory type4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory typeSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Form Factor30.5cm x 24.4cm
Form FactorATX Form Factor
AudioRealtek® Audio CODEC
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
AudioSupport for S/PDIF Out
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion SlotsCPU:
Expansion Slots- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Wireless- BLUETOOTH 5.3
Wireless- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless- Support for 11ax 160MHz wireless standard
WirelessIntel® Wi-Fi 6E AX210
Graphics* Support for DisplayPort 1.2 version and HDCP 2.3
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
Graphics* Support for HDMI 2.1 version and HDCP 2.3.
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
Graphics- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
FeaturesSupport for GIGABYTE Control Center (GCC)
FeaturesSupport for Smart Backup
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 128 Mbit flash
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
StorageCPU:
StorageChipset:
Storage- 4 x SATA 6Gb/s connectors
Storage- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Bluetooth5.3
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors3 x system fan headers
Connectors1 x system fan/water cooling pump header
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x S/PDIF Out header
Connectors1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors1 x USB 3.2 Gen 1 header
Connectors2 x USB 2.0/1.1 headers
Connectors1 x serial port header
Connectors1 x reset button
Connectors1 x Q-Flash Plus button
Connectors1 x reset jumper
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x RGB LED strip header
Connectors2 x M.2 Socket 3 connectors
ConnectorsBack Panel Connectors
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x DisplayPort (Note)
Connectors1 x RJ-45 port
Connectors3 x audio jacks
Connectors1 x CPU fan/water cooling pump header
Connectors4 x USB 2.0/1.1 ports
Connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors3 x addressable RGB Gen2 LED strip headers
Connectors2 x antenna connectors (2T2R)
Connectors1 x USB 3.2 Gen 2 Type-A port (red)
Connectors1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
USBChipset:
USB- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB- 2 x USB 3.2 Gen 1 ports available through the internal USB header
USB- 4 x USB 2.0/1.1 ports available through the internal USB headers
USBChipset+USB 2.0 Hub:
USB- 4 x USB 2.0/1.1 ports on the back panel
USB- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Тегло0.00кг
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
АтрибутСтойност
СокетLGA1700
Форм факторATX
ЧипсетIntel B760
Тип паметDDR5
Слотове за памет (count)2
Максимална памет (GB)128
M.2 слотове (count)2
SATA портове (count)4
PCIe x16 слотове (count)1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN1 Gbps
USB-C портове (count)1
RGB подсветкаНе
Тегло0.00кг

Дънна платка GIGABYTE B760 DS3H WF6E GEN5 LGA1700

Изживейте свързаност и производителност от следващо поколение с дънната платка GIGABYTE B760 DS3H WF6E GEN5. Проектирана за процесори Intel от 13-то и 14-то поколение, тя разполага с вграден Wi-Fi 6E и M.2 слот с PCIe 5.0 за изключително бързи скорости на съхранение.

Ключови Предимства

  • Вграден Wi-Fi 6E — Насладете се на безжична свързаност без забавяне с най-новия стандарт Wi-Fi 6E, осигуряващ по-високи скорости и по-ниска латентност.
  • Поддръжка на PCIe 5.0 — Един M.2 слот с PCIe 5.0 предлага до два пъти по-голяма честотна лента от PCIe 4.0 за ултрабързи SSD дискове.
  • DDR5 памет — Съвместима с високоскоростна DDR5 RAM за подобрена отзивчивост на системата и многозадачност.
  • Стабилно захранване — Фазовата дигитална VRM 6+2+1 осигурява стабилно захранване за натоварени задачи.

Технически Спецификации

СпецификацияСтойност
СокетLGA1700
Форм факторATX
ЧипсетIntel B760
Тип паметDDR5
Слотове за памет2 (DIMM)
Максимална памет128 GB
M.2 слотове2 (1 x PCIe 5.0, 1 x PCIe 4.0)
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 6E
Скорост на LAN1 Gbps
USB-C портове1
RGB подсветкаНе (само RGB хедъри)

Какво има в кутията

  • Дънна платка
  • Ръководство за потребителя
  • Заден панел I/O Shield
  • 2 x SATA кабела
  • Wi-Fi антена
